The Mondraker Summum Carbon Upgraded with Mind Telemetry

ALL THE DATA FROM YOUR FAVOURITE DH RUNS AT YOUR FINGERTIPS

In DH everything boils down to a question of numbers. 0.2 seconds late on the brakes and you’re off the racing line. 10mm off the racing line and there’s no grip. 2 clicks more rebound damping and your suspension will start packing down. Keeping those numbers under control may mean the difference between the podium or the pits. If you like winning, or you just want to improve your riding, you’re in luck. Mondraker’s Mind telemetry system is now available on the Summum Carbon, because the winning numbers are the ones that count.

THE STRENGTH OF MIND

The Mind system was developed 100% in-house at Mondraker. It’s a revolutionary, unprecedented Smart Telemetry System which stands out from other systems currently available thanks to its real-time integrated and wireless monitoring of the front and back suspension while you ride. Totally wireless and with the measuring devices integrated into the fork and rear suspension, the data they provide is on hand via the myMondraker app on your phone, tablet or PC.

MIND + SUMMUM CARBON = THE WINNING COMBO

The arrival of Mind technology to the Summum Carbon R and RR was only a matter of time. Mind was added to the arsenal of tech on the Summum Carbon: Stealth Air Carbon, Zero Suspension System and Forward Geometry. Telemetry has been fundamental in DH for many years now but was out of reach for the majority of racers. You can’t underestimate how important it is to know how your suspension is working at all times if you want to get the most out of your bike. The Summum Carbon is one of the ranges that most stands to gain from the support of a system such as Mind.

Now, thanks to Mind you have all the data regarding what your suspension is doing whether it be on sections of a track or whole race runs. You’ll know at all times how much travel you’re using front and back, how often you’re in the air and for how long and how far, suspension compression on take-off and landing, plus graphs showing suspension travel, altitude and speed during the run.

ALL THE ADVANTAGES OF THE MIND SYSTEM (via the myMondraker app)

• Correct sag setting.
• Suspension set up according to you riding ability or preferences.
• Sag setting check-up for both front and rear suspension quickly and easily.
• Average speed.
• Distance travelled.
• Duration of the ride.
• Total elevation gain.
• Track your ride on the map with satellite view.
• Record the number of jumps throughout your ride.
• Locate your jumps on the map.
• Speed at the time of your jump.
• Length of your jump.
• Total air-time of each jump.
• Front and rear suspension travel upon landing.
• A record of the number of times your suspension bottomed out throughout your ride.
• Maximum fork travel throughout your ride.
• Maximum shock travel throughout your ride.
• Suspension travel at any given point of your ride.
• Fork travel graph of your whole ride.
• Shock travel graph of your whole ride.
• Speed graph of the whole ride.
• Altitude graph of the whole ride.
• Share your ride on Strava.
• Weekly, monthly or lifetime summary of your rides.
• Registry of your guarantee.
• USB-C charging ports.

MIND: TOTAL INTEGRATION WITH YOUR FORK AND SHOCK.

The incorporation of Mind to the Summum Carbon comes with all of the principal elements 100% integrated.

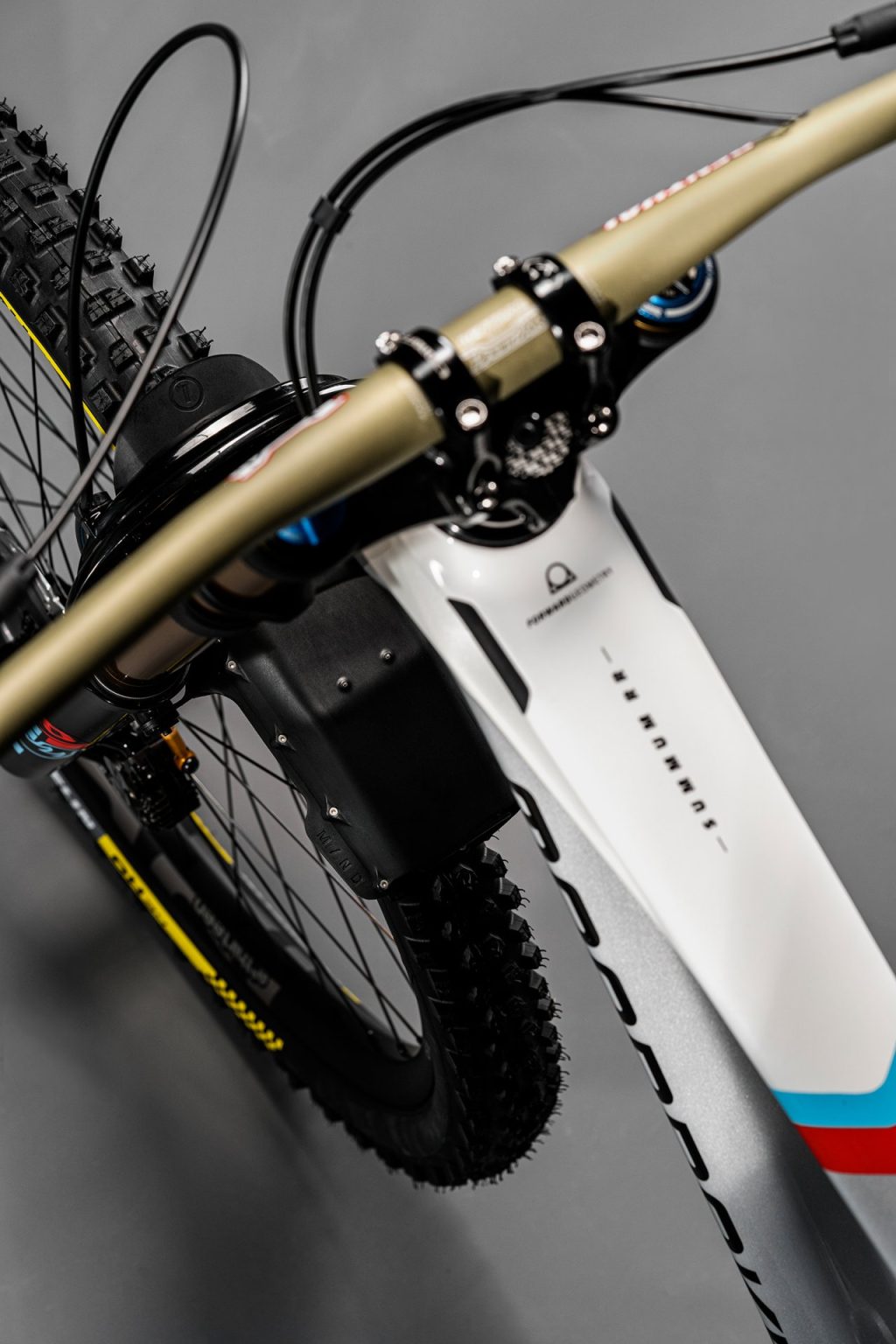

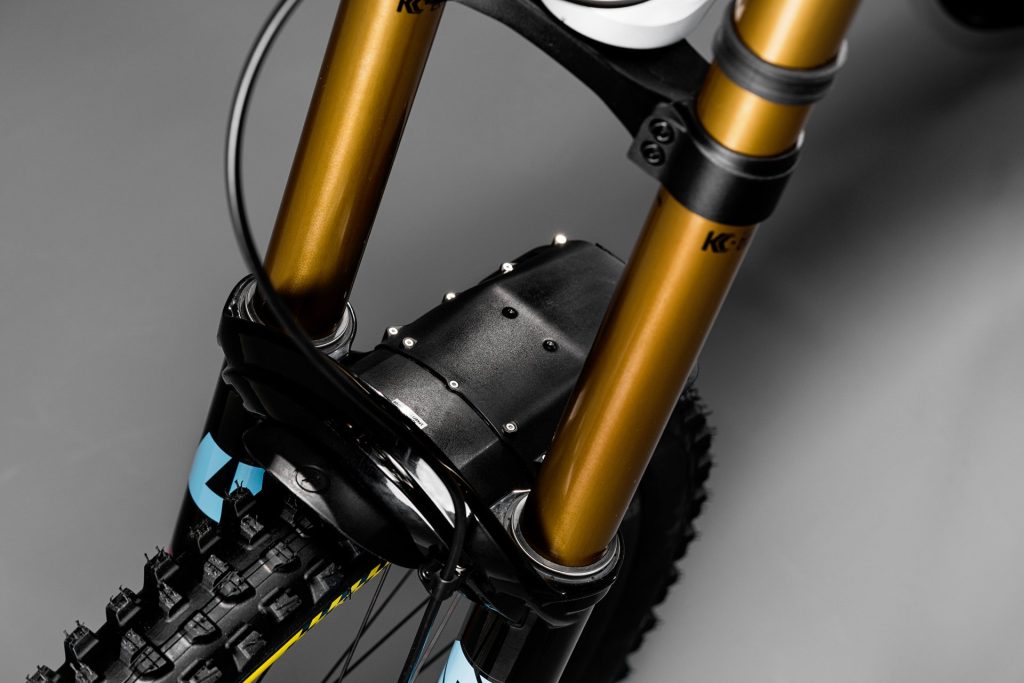

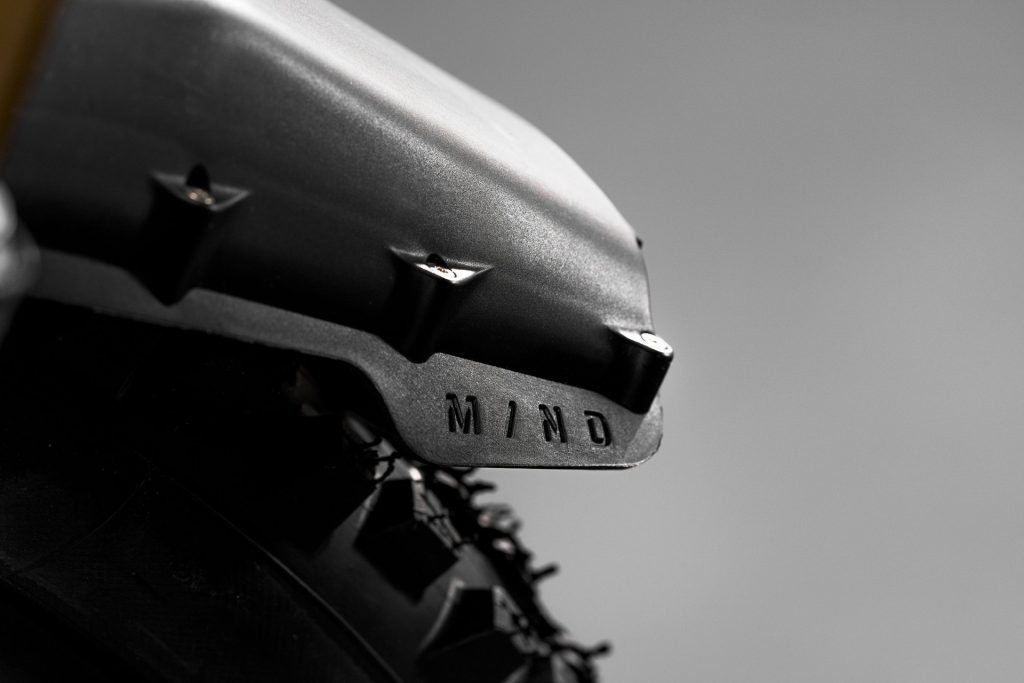

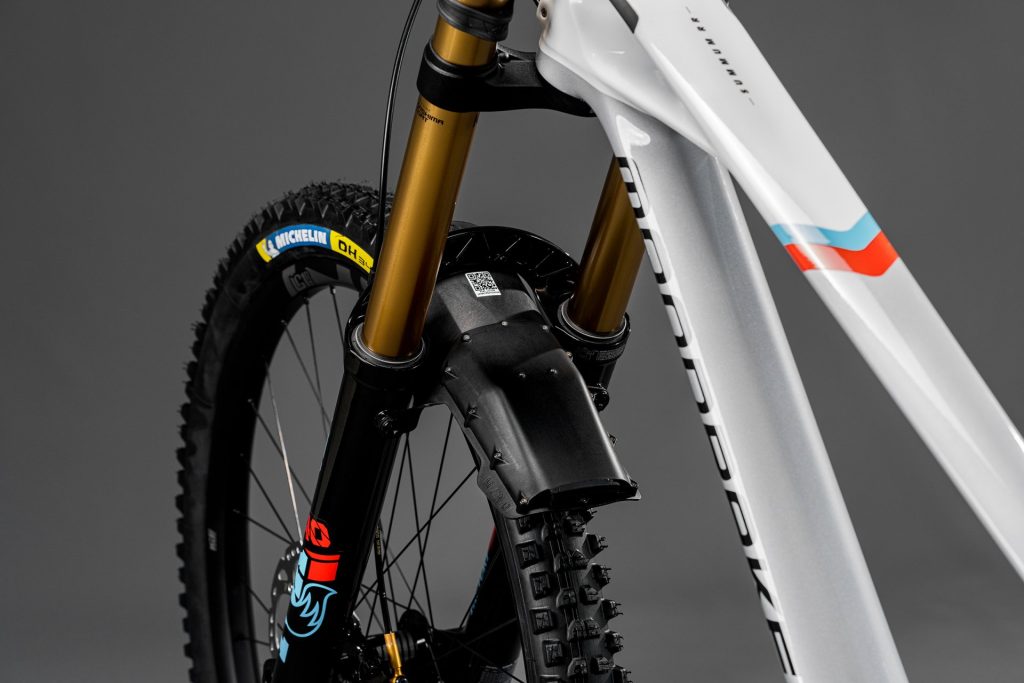

The front sensor is neatly integrated with the fork. Built into the front mudguard it takes advantage of the Fox 40’s threaded mudguard mounting points. The sensor detects the field from a magnet which is housed in the lower part of the steerer tube and takes readings of the relative distance between the two 100’s of http://www.mondraker.com times per second while on the move, thus recording the travel and speed of the fork accurately and constantly. The Mind system for the Summum Carbon is only compatible with the Fox 40.

This sensor also serves as the head-unit for the system from which all the data from the ride is sent to the myMondraker app via Bluetooth.

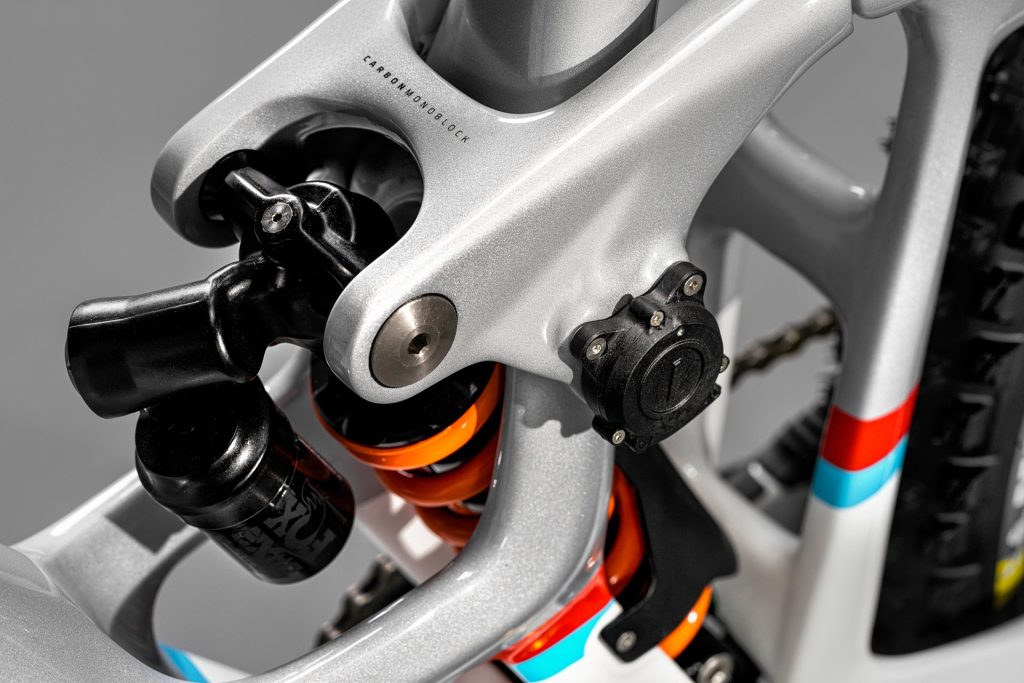

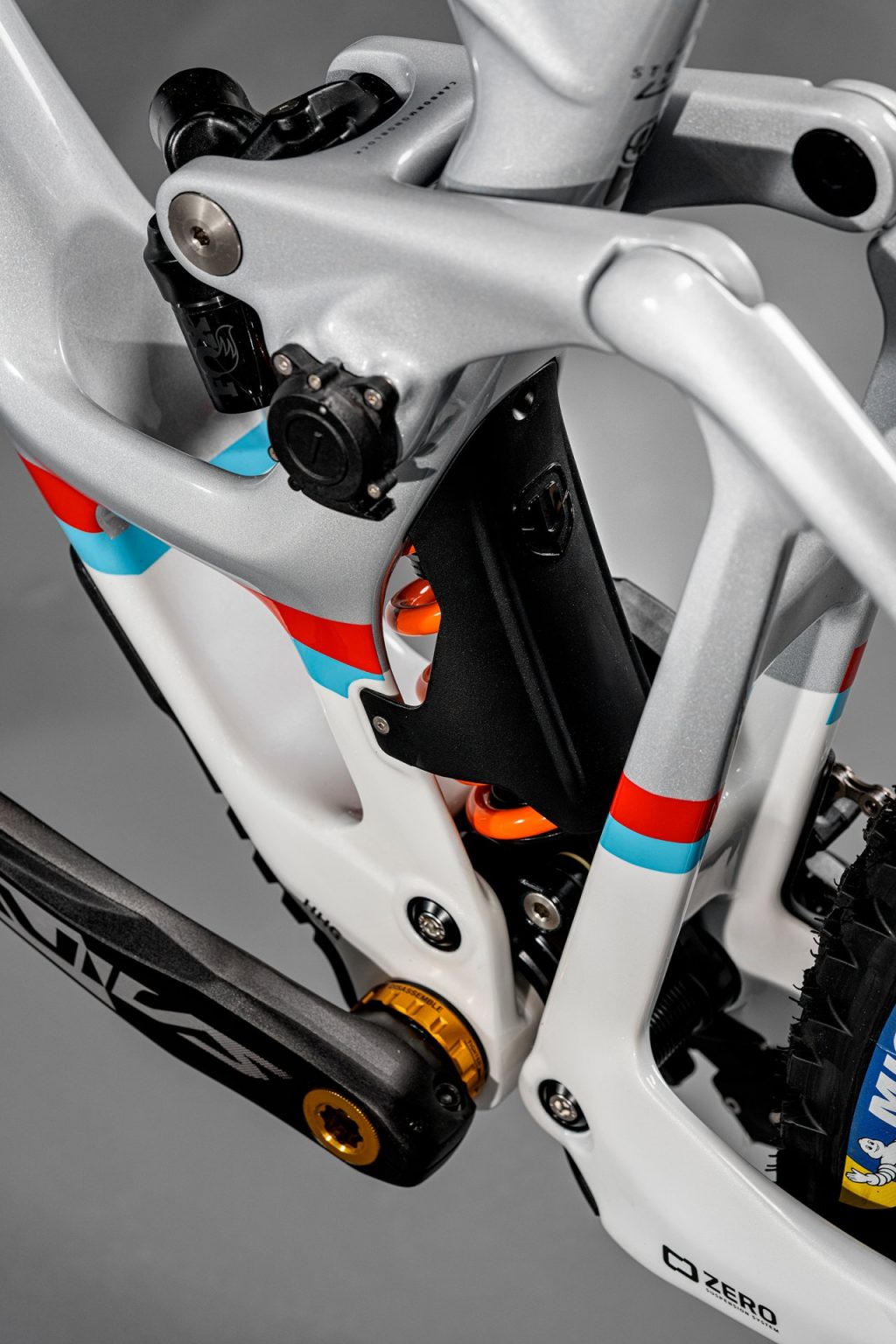

The rear Mind device is located on the top shock linkage of the Zero Suspension System and works in tandem with a magnet which is fitted to the pivot bolt. Together they generate all of the data regarding rear suspension performance and send it to the head unit located on the fork.

ANALYSE YOUR TRAINING SESSIONS AND RACES WITH THE MYMONDRAKER APP

Via the myMondraker app and your personal Mondraker account on your smartphone, tablet or PC you can monitor all the parameters offered up by Mind regarding your bike’s suspension action as well as its location thanks to the builtin GPS sensor.

All of your data including your weight, low and high-speed compression, low and high-speed rebound, and the preload pressure settings on your Fox 40 are to hand in your profile and serve as a set-up guide from which you can make changes depending on your riding style or the demands of the track you’re on. What’s more you have tons of useful information you can take advantage of such as distance travelled, time, altitude gain, if and where you bottomed out, and all the data about your time in the air.
