Mondraker New Foxy Carbon – More Enduro Than Ever
Foxy is and always has been “THE BIKE” par excellence at Mondraker. Originally released in 2004, it never stopped evolving and the 2015 release of the Foxy Carbon pumped the model all the way up to eleven. Since then, and taking into account the improvements made over the last few seasons, it’s been one of the most popular and most successful models in the world.
It’s unreal pedalling efficiency and generous suspension travel make the Foxy Mondraker’s most complete model. In this, the 2022 season the Foxy Carbon was re-evolved to keep it up there as the undisputed leader: “THE BIKE” and an international benchmark to be reckoned by.
STEALTH AIR FULL CARBON
As a matter of course the Foxy Carbon frame is manufactured using our cutting- edge STEALTH AIR FULL CARBON technology. This allows to make a frame with a unique silhouette and gorgeous lines. What’s more, during manufacture the different layers of the carbon fibers are applied manually, allowing to concentrate them exactly where wanted, thus maximizing both rigidity and lightness. Lightness is and has always been a priority, but with this bike stiffness is the first concern which has lead the focus on the area around the bottom bracket and the lower suspension link. The chainstays have also been modified and reinforced compared to previous generations. That said it’s still one of the lightest enduro bikes on the market.
MORE ENDURO

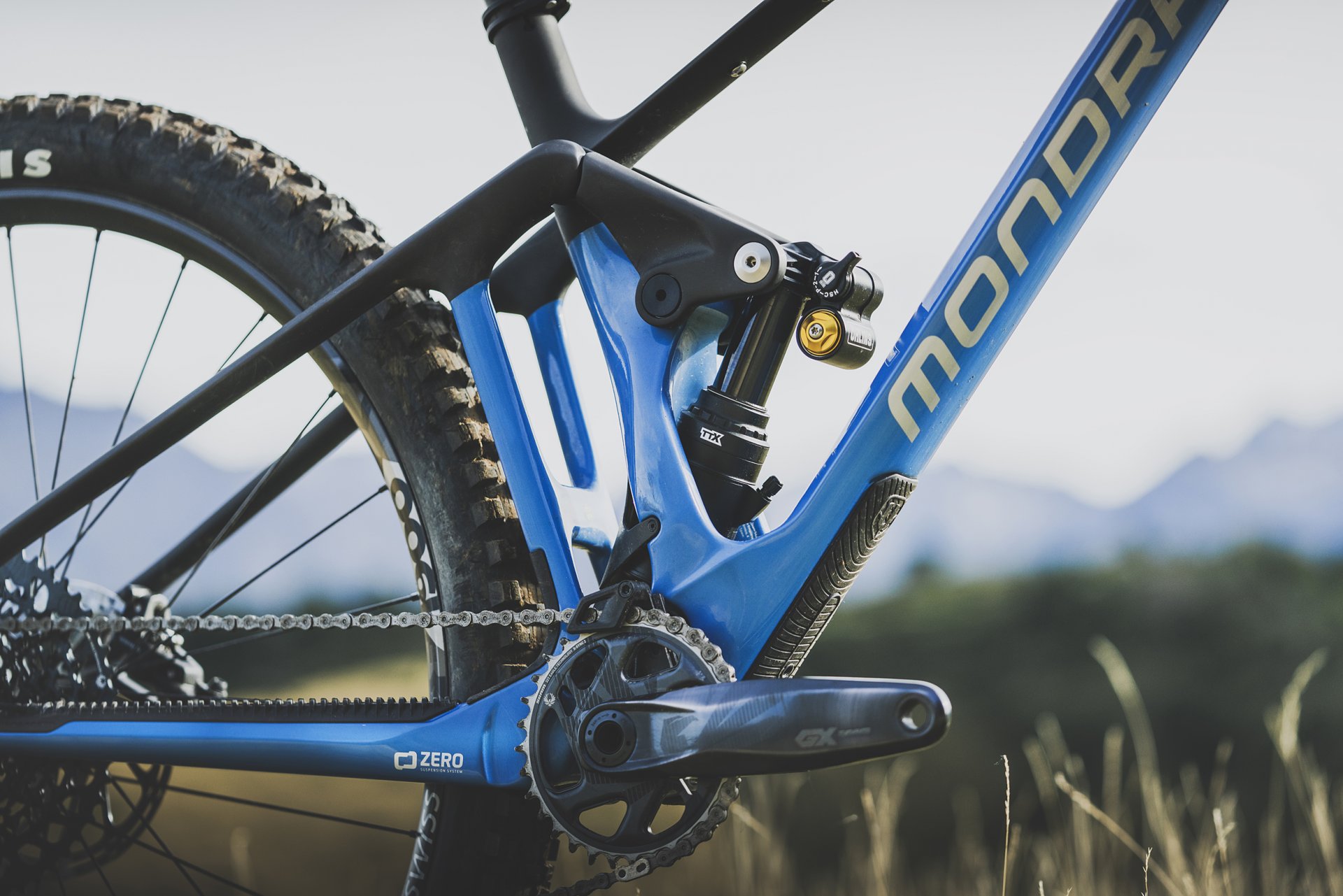

These frames use the patented ZERO SUSPENSION SYSTEM which is comprised of two links which have been completely redesigned compared to previous models. In fact the time and effort dedicated to the rear suspension system for this model has been significant, culminating in completely reworked kinematics.A longer stroke shock was also fitted which in turn offers a plusher ride compared to previous models. An added value is that Mondraker worked hand in glove with our shock partners throughout the development process to perfect the shock tune straight from the factory. In short, the Foxy is now plusher and more enduro than ever before whilst still being very effective on the climbs.
Something else to bear in mind is that the Foxy Carbon comes with Mondraker’s MIND telemetry technology fitted as standard. In short, MIND helps you to set up your suspension perfectly. Combined with the myMondraker app you’ll nail your suspension settings from the very start, setting up your bike exactly to suit your weight and riding style. By following a few simple steps and making some easy adjustments you’ll be on your way to being a better rider. What’s more, after each and every ride you’ll be able to consult data such as the distance you’ve ridden, the jumps you’ve launched and just how far you jumped, as well as just how much suspension travel you were using at any time during the ride… and more.
ADJUSTABLE GEOMETRY
One of the features which makes this model stand out from its Foxy Carbon predecessors is the ability to change the geometry be- tween two settings: “standard” or “low”.
By varying the position of the rearmost screw on the lower shock link, you can slacken the steering angle from 65o to 64.5o (64.5o to 64o on the XR model), the seat tube angle from 76o to 75.7o and the bottom bracket height from -30mm to -25mm (slightly lower than on the previous model).
Perhaps the most significant and noticeable change is the in- crease in chainstay length, from 435mm in the standard position to 445mm in the “low” position. The “low” setting thus increases grip, mid-corner and overall stability and poise at high speed as well as offering better weight distribution, performance and more active suspension behavior on the descents. Subtle geometric modifications of 0.5o to the head angle or 10mm to the chainstay length which add up our new Foxy Carbon performing better whatever your style and preferences are as a rider.
THE RANGE
The new Foxy Carbon range is comprised of 3 different models sharing the same frame but with different component specs as follows:

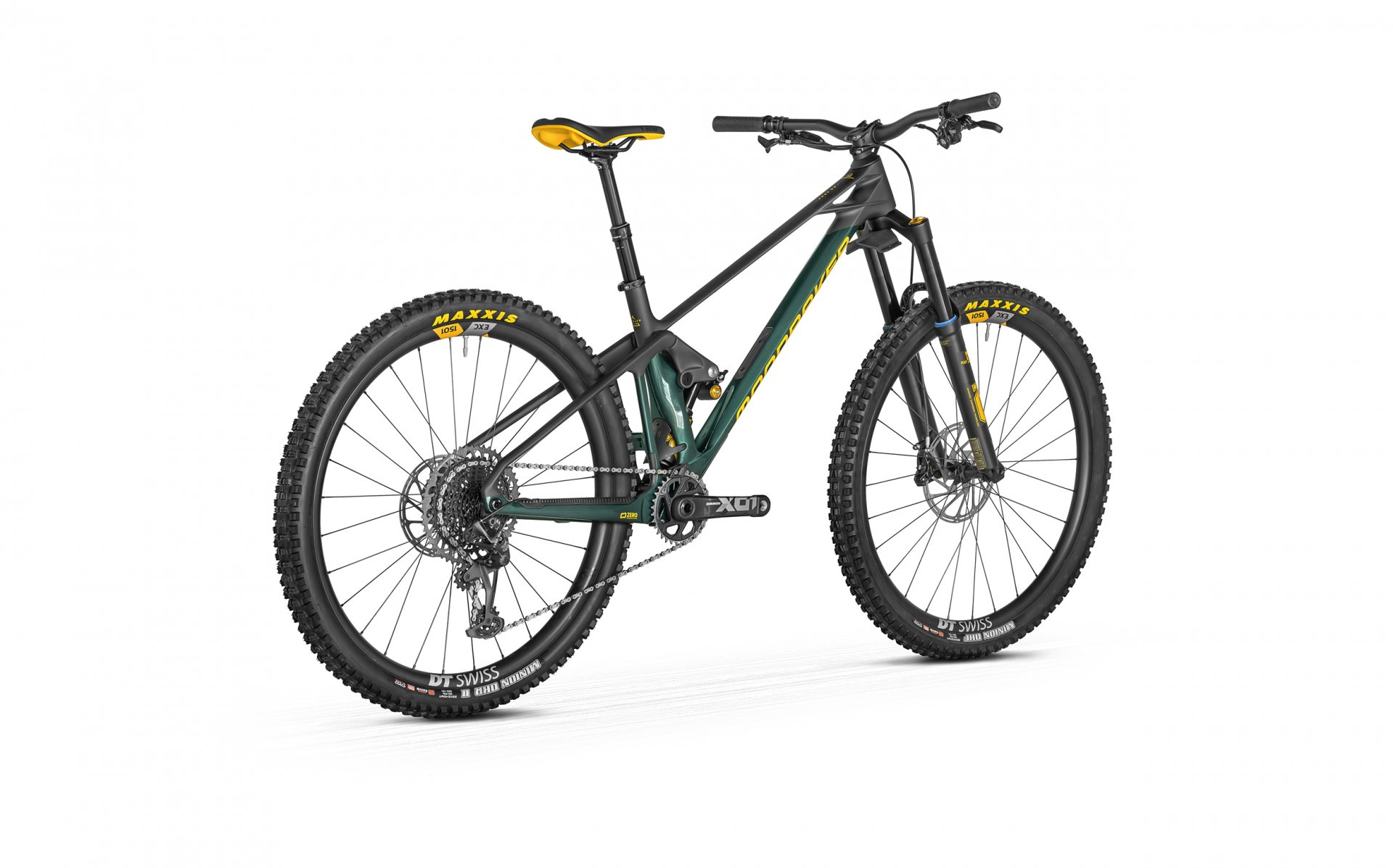

The Foxy Carbon XR is the most radical of the three with 170mm of travel at the front and 150mm at the rear. It comes fitted with the prestigious Öhlins suspension (RFX 36 fork and TTX Air shock absorber), the drivetrain is provided by SRAM with an X01 Eagle derailleur, DT Swiss EXC1501 Carbon Spline 29 wheels; SRAM G2 RSC brakes and ONOFF components including the Krypton Carbon 1.0 handlebar.

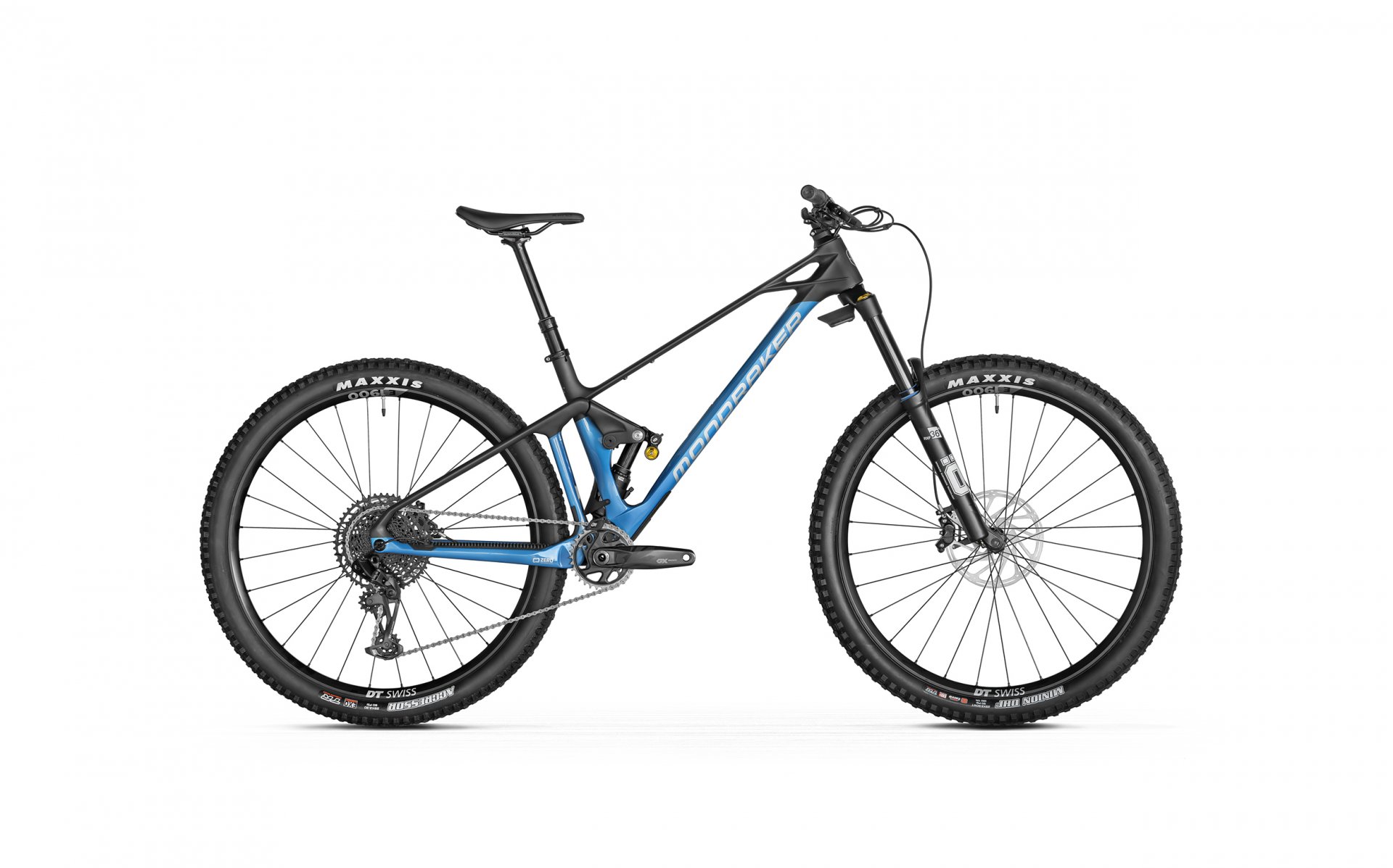

The Foxy Carbon RR has 160mm of travel at the front and 150mm at the rear, with a Fox fork and shock, an SRAM drivetrain with GX Eagle derailleur; DT Swiss EX1700 Spline 29 wheels; SRAM G2 R brakes and ONOFF components.

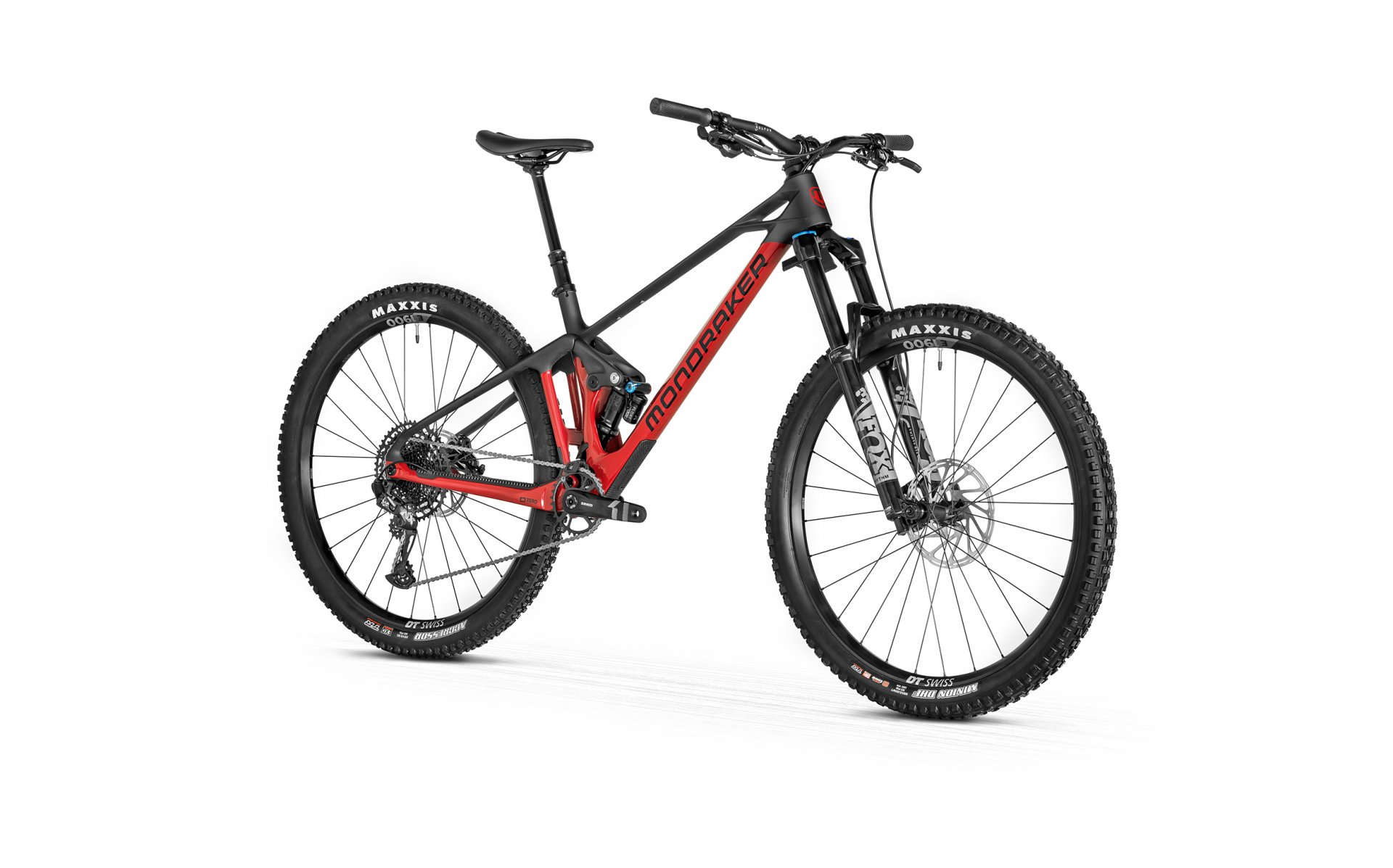

The Foxy Carbon R also comes fitted with Fox suspension with 160mm at the front and 150mm at the rear, SRAM’s NX Eagle drivetrain, DT Swiss E1900 Spline 29 wheels, SRAM G2 R brakes and ONOFF components including the Pija dropper seatpost.
All three models offer the option of adjustable geometry, thus allowing their riders to customize their bikes to their liking. Available in 4 different sizes: S, M, L and XL.
