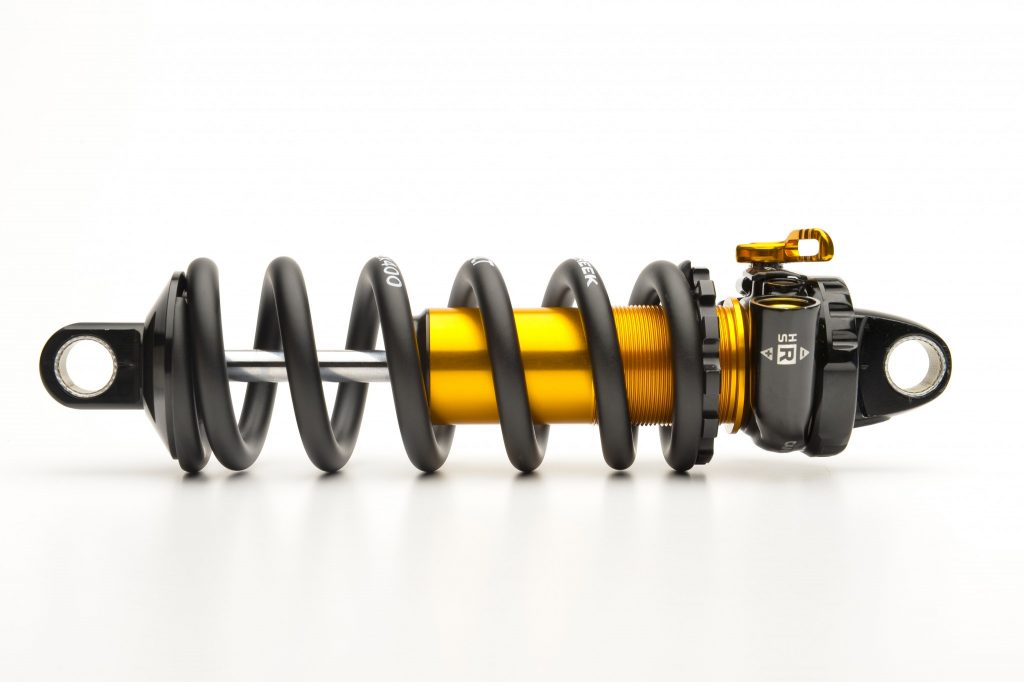

For years riders have had to sacrifice carrying the weight of a coil shock in order to get the performance and consistency they desired. The DBcoil [IL] is the first ever twin-tube inline shock that packs in all of the function of a piggyback coil shock in a lighter (*333 g difference) and sleeker package. Equipped with a VALT®* lightweight spring, Climb Switch technology, 4-way adjustability and unparalleled Double Barrel performance, the DBcoil [IL] dominates aggressive descents with superior small bump compliance, heat dissipation and linear spring action. * (216×63) DBCOIL [IL] with VALT® as compared to a DBCoil CS with a standard spring.

GO3 Camera by Insta360

Win a GO3 Camera by Insta360 this issue in our FREE subscriber prize draw.

GO3 Camera by Insta360

Weight

285 grams (216 x 63 damper only)

Damping

Twin-tube independent compression & rebound in two high-speed and four low-speed damping circuits

Spring

Valt® Lightweight Spring *Must be purchased separately.

Adjustments

Four-way independent adjustment:

• High-speed compression
• Low-speed compression
• High-speed rebound
• Low-speed rebound
• Climb Switch On/Off

Finish

Anodized and laser-etched Standard

Lengths

Standard
190 x 50mm (7.48”x 1.96”) 200 x 50mm (7.87”x 1.96”) 200 x 57mm (7.87”x 2.24”) 216 x 63mm (8.5” x 2.48”)

Metric
190x40mm (7.48” x 1.56”) 190x45mm (7.48” x 1.77”) 210x50mm (8.2” x 1.96”) 210x55mm (8.2” x 2.16”)

Mountain Interface

High performance low friction bushing 1/2” universal axle

Manufacturing

Handbuilt in North Carolin, USA

Lighten Up

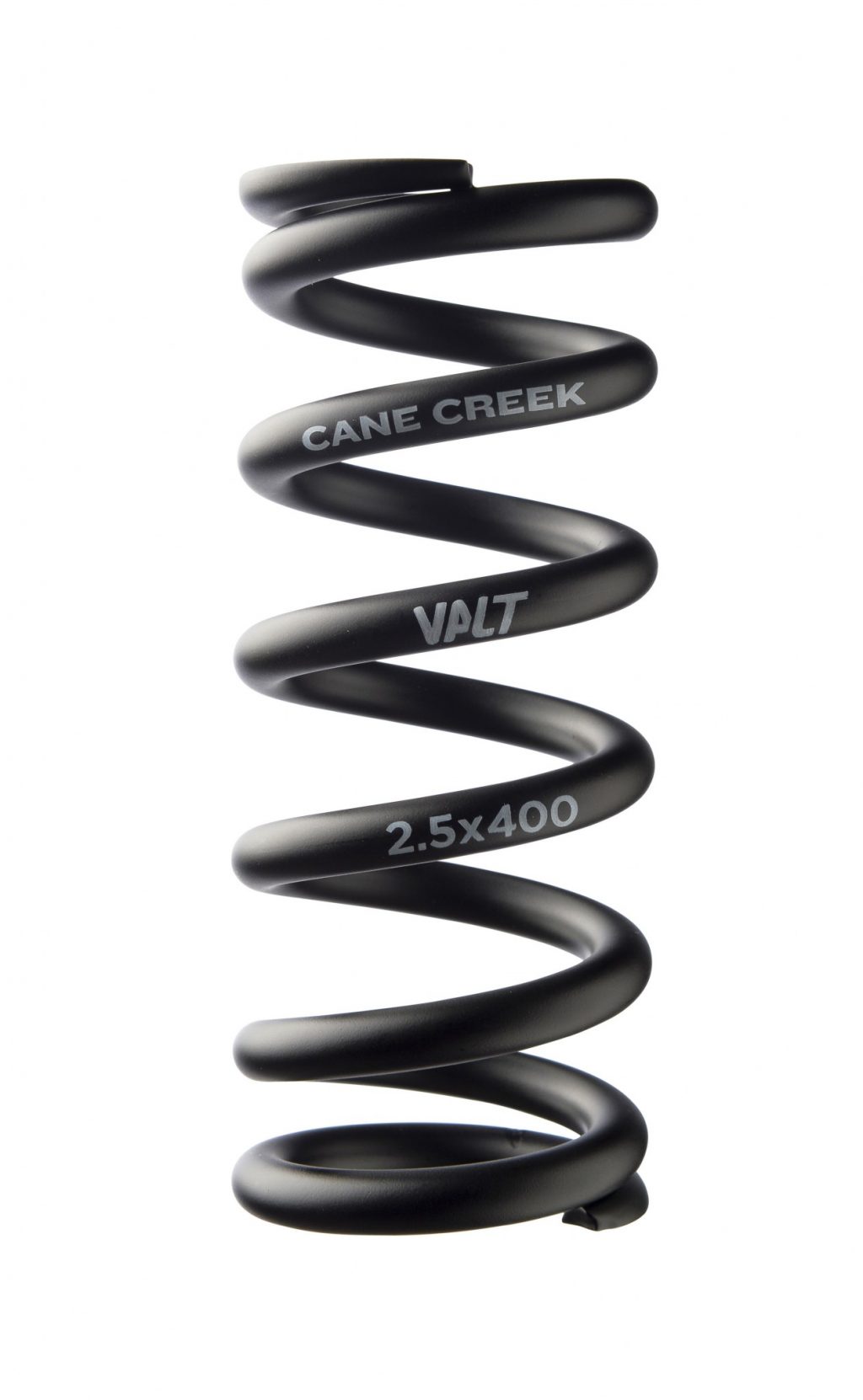

The performance of your shock is directly related to the quality of your spring. VALT® is a lightweight coil spring that offers a significant weight reduction over standard steel springs. Designed to be as light as possible without sacrificing action or durability, the high quality steel in VALT® allows for less material to be used in the coils. Riders can enjoy the performance benefit and consistency without the weight penalty.. The large inner diameter of the VALT® means it will fit Cane Creek shocks and most other shock options on the market.

Weight Savings

50-211g (varies by stroke/rate)

Fitment

Cane Creek and other shock brands – may require conversion clip

Material

High-performance steel
